Описание

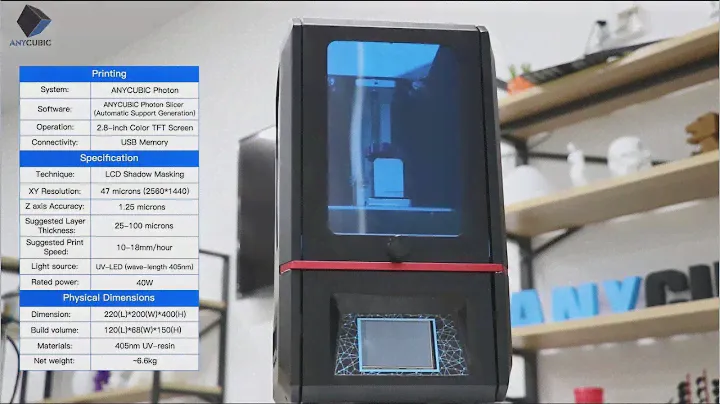

Product Description The colorful touch screen equipped with Photon system and bring new functions. You could pre-view the model in SD card just like you saw pictures in Windows OS. Real-time display printing process function is available now. 2560*1440(2k)HD LCD make the details down to few micrometers. Touch Screen Easy manipulation, real-time previews of printing status. Unique Resin Vat Easily adjust and replace the FEP film to save your cost of use. Off-line Print the Photon supports offline print with built-in operational system, improve print stability. Easy Leveling 3-step Leveling. Technical Specifications ● Printing Technology: LCD-based SLA 3D Printer ● Light-source : UV integrated light(wavelength 405nm) ● XY DPI : 47um (2560*1440) ● Y axis resolution : 1.25um ● Layer resolution : 25 ~ 100um ● Printing speed : 20mm/h ● Rated Power : 40W ● Printer size: 220mm*200mm*400mm ● Printing volume : 115mm *65mm *155mm (4.52″*2.56″*6.1″) ● Printing material : 405nm photosensitive resin ● Connectivity :USB ● Package Weight: 6.6kg 2k LCD Screen 2560*1440 HD LCD, printing details down to few micrometers. Quick Slicing Self-developed slicer software, quick to slice and easy to use. Easy Leveling Lower the platform down to the screen; Feel the resistance when pulling the paper in-between; Tighten one screw; Leveling done. Package List Srews(M5)*5 Scraper Tool set USB Drive Glove Resin Vat User manual Funnel Power cord Photon Mono 4k Photon Mono X 6k Vyper Printing Technology LCD-based SLA Printing LCD-based SLA Printing FDM (Fused Deposition Modeling) XY Resolution 3840*2400 px 5760*3600 px None Build Volume 132mm*80mm*165mm 197mm*122mm*245mm 245*245*260mm Max.Printing Speed 50mm/h 80mm/h 100mm/s Print Materials 405nm UV Resin 405nm UV Resin PLA, ABS, PETG, Wood Z axis Accuracy 0.01mm 0.01mm 0.002mm Photon LCD-based SLA Build Area: 115x65x155mm Filament:405nm UV Resin Diffusion Illuminant Single Z-axis Photon S LCD-based SLA Build Area: 115x65x165mm Filament:405nm UV Re
